Drain Set / Kit Closed Wound Disposable Suction Drainage System For Body Drain Removal
Suction Drainage System ,consist of drainage evacuator,pvc connecting tube with robert clamp,with or without outlet on bottom, silicone drain tube and stain steel needle,with or without collect bag.
Negative pressure - 20kpa,FR7 - FR19 needle,various size,drain tube,packing,etc.
Made of imported medical grade silicone for good biocompatibility .
Drain set / kit solves the problem of the drainage liquid volume limited,decreases the work of drainage waste liquid ,requires no expensive equipment or specially trained staff.
Non return valves in both the inlet and outlet of the drain evacuator minimise
handling problems , consequently saves nursing time ,reduce the risk of cross infection and also easy to operate.
Product specification:
Item
|
Drain Set / Kit Closed Wound Disposable Suction Drainage System For Body Drain Removal
|
Alternative name
|
Suction Drainage System ,Wound Drainage System, Closed Drainage management,
|
Material
|
100% Medical grade PVC and silicone
|
Feature
|
Superior biocompatibility,good elasticity,infection control
|
Color
|
Transparent,clear or customized
|
Volume
|
25ml,100ml, 220ml evacuator or else
200ml,400ml,500ml,700ml,1000ml drainage bag or else
|
Trocar size
|
FR/CH 7 - FR/CH 22 or else
|
Suction pressure
|
25 mmHg / 3,3 kPa - 115 mmHg / 15 kPa for bellow evacuator
Not less 20 kpa for bulb evacuator
|
Style
|
Bellow or ball evacuator
Top outlet or bottom outlet
Bottom with or without outlet
Connecting with or without drainage collect bag
Round,flat,cross silicone drainage tube
|
Types
|
A: Evacuator with connecting tube
B: Evacuator with connecting tube, drain tube and trocar
C: Evacuator with connecting tube, drain tube and trocar, collect bag
|
Sterile
|
Ethylene oxide sterile
|
Packing
|
1pc / peel pouch,80 pcs / carton or customized
|
Outer carton
|
Standard export corrugated carton
|
MOQ
|
5,000 pcs or negotiable
|
Drainage kit parameter:
Specification
|
Drainage Tube
|
Connecting Tube
|
Drainage Ball
|
Trocar
|
Collect bag
|
O.D
|
Length
|
O.D
|
Length
|
Volume
|
O.D
|
Length
|
Capacity
|
Fr10
|
3.2
|
200
|
3.2
|
800
|
100 / 200 ml
|
2.6
|
130
|
200 ml
|
Fr12
|
3.8
|
200
|
3.8
|
800
|
100 / 200 ml
|
3.4
|
130
|
400 ml
|
Fr15
|
4.8
|
200
|
4.8
|
800
|
100 / 200 ml
|
4.1
|
130
|
500ml
|
Fr18
|
6.0
|
200
|
6.0
|
800
|
100 / 200 ml
|
5.3
|
130
|
600ml
|
Fr20
|
6.7
|
200
|
6.7
|
800
|
100 / 200 ml
|
6.0
|
130
|
700 ml
|
Fr22
|
7.3
|
200
|
7.3
|
800
|
100 / 200 ml
|
6.0
|
130
|
1000 ml
|
Evacuator comparison:
Volume
|
Large volume drainage
|
Medium
|
Small
|
Gentle Suction Drainage
|
Average pressure
|
Average initial negative pressure when activated:
115 mmHg/15 kPa
|
Average initial negative pressure when activated:
75 mmHg/10 kPa
|
Average initial negative pressure when activated:
75 mmHg/10 kPa
|
Average initial negative pressure when activated:
25 mmHg/3,3 kPa
|
Volume
|
220 ml
|
100 ml
|
100ml
|
25 ml
|
Drainage bag volume
|
200 / 400 /1000 ml
|
200 / 400 /1000 ml
|
Without bag
|
200 / 400 1000 ml
|
Surgical Procedures
|
Orthopaedics Gynaecology General Surgery
|
General Surgery Breast Surgery, e.g. mastectomies Wound drain in situ
|
Hand Surgery Biopsies Day Surgery
|
Abdominal Surgery
|
Basic terms:
Trade terms:
FOB,FCA,CFR,CIF,DDU or else
Shanghai or China port
Payment terms:
30% deposit by TT and balance against BL copy by TT
Letter of Credit at sight for big orders
30% deposit by TT and balance before delivery by TT
Western Union for small trial orders and sample orders
Delivery terms:
2-4 weeks ,depending on your order quantity
Partial shipment is allowed for big orders
Certificate:
CE, ISO9001, ISO13485, FDA
Quality standard: Average Quality Level: 1.5
Cautions:
1. Widely used in Orthopedics, Breast, Thyroid, Abdominal operation for closed wound.
2. EO Sterile,do not use if the packing is damaged or opened.
3. Single use only, prohibited to re-use.
4. Shelf life: 2 years after factory producing date.
5. Stored under shady,cool,dry,ventilated and clean condition .Avoid direct sunlight .
Product feature:
1. Low pressure design provides continuous gentle suction and minimizes tissue trauma.
2. Good elasticity,superior biocompatibility,non-toxic,DEHP free.
3. Bottom outlet models can connect with collection bag, and increase protection compare to direct handing and disposal.

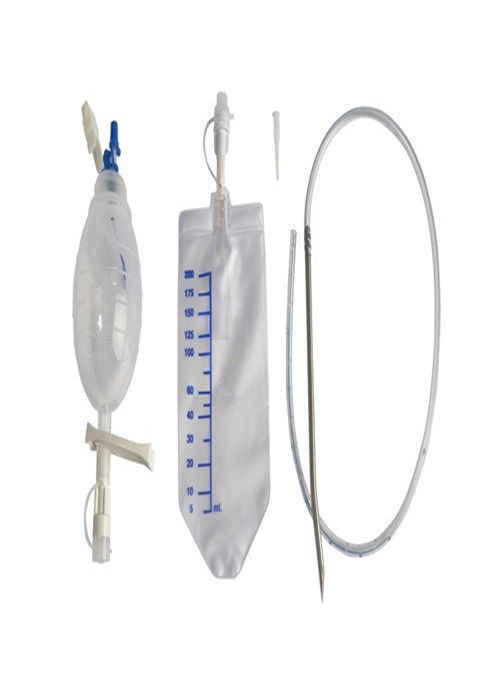

4. Drainage set / kit ,consist of evacuator,tube,needle or bag.
5. Squeeze the reservior and connect with drains for suction.
6. Quality anti-reflux valve totally eliminates liquid reflux.
Product Benefits:
Pre-configured sets/kits
The pre-configured wound drainage set consists of evacuator, pvc connection tube, Y-connector, silicone drainage tube ,optionally a disposable guide needle and drainage bag to solve the capacity problems and reduce the work of drain liquids. Assembly with silicone drains and trocar are also optionally available.
Minimised risk of cross-infection
Disposable cost-effective replacement bags with one-way valve minimise the risk of cross-infection and pollutions to protec patient and nurse health .Meantime ,it's also save drain time and energy,increase work efficiency .
Improved patient and user protection
Two one-way valves efficiently prevent backflow thus minimising the risk of retrograde wound infections to keep people and environment safety .
Gentle application
Disposable suction drainage system,can enlarge the capacity for manual evacuation using a constant low vacuum, ensures gentle wound drainage in sensitive tissue (e.g. breast tissue).
OEM service :
1. Customized innovation,quality,sourcing according to your needs and value.
2. Customized sample,lgo / brand printed.
3. Customized capacity,size,color,style,printing , etc .
4. Customized packaging and printing on cartons available.
5. Negotiated MOQ,trade terms,payment terms,packing,delivery method ,etc.

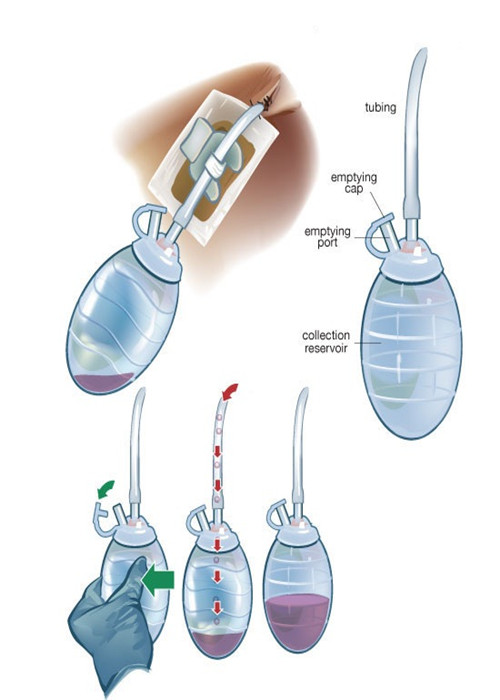

Usage show:
